Manual Pickup Truck

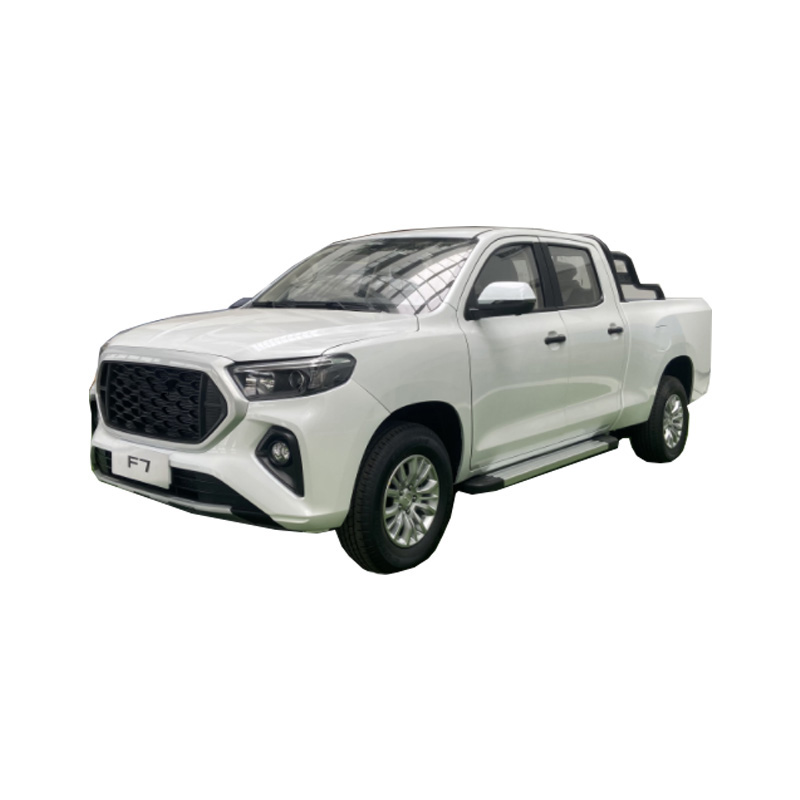

Exterior design of 4 door truck with short bed:

Aesthetics and practicality are the unique strengths of our 4 door truck with short bed. This Manual pickup truck, built on a pure white exterior, presents a visual language that blends toughness and technology. The Double-cabin pickup's front fascia is most striking, featuring a large, smoked honeycomb grille with a silver brand logo embedded in the center. Sharp, eagle-eye LED headlights flanking the vehicle are embedded with matrix light sources, and independent fog lamps are located at the bottom. The vehicle's side profile is both imposing and clean, while the swooping waistline stretching from the front bed to the rear bed lends it a dynamic stance. Dark privacy window frames contrast sharply with the silver multi-spoke aluminum alloy wheels. The open cargo box, which connects the cockpit and trunk, features a striking black gantry structure, enhancing cargo security and adding a sense of depth through the contrasting black and white design. The Double-cabin pickup's overall design, set against a pure white backdrop, perfectly balances the rugged tool attributes of a pickup truck with the modern aesthetics of a passenger car, showcasing its all-around appeal.

Structure of 4 door truck with short bed:

Body Structure: Manual pickup trucks feature a four-door, five-seat design, balancing comfort and space utilization.

Braking System: Pickup truck with 4 Doors utilize front ventilated disc brakes and rear drum brakes for enhanced driving safety.

Frame Structure: Pickup truck with 4 Doors utilize a frameless design, ensuring stability and reliability.

Performance of double cabin pickup:

The double cabin pickup is equipped with a highly efficient diesel engine, delivering a maximum power of 105kW and a maximum torque of 200Nm, delivering powerful performance and low fuel consumption. Its four-wheel drive (4x4) system ensures stable operation on muddy, sandy, mountainous, and other road conditions. The double cabin pickup's chassis utilizes alloy structural materials and a multi-link suspension system, enhancing its stability and carrying capacity. The double cabin pickup's interior features an intelligent central control system, minimizing fatigue during extended driving. This makes the vehicle suitable for both commercial transport and off-road leisure use.

Load capacity of manual pickup truck：

Standard wheelbase manual pickup truck: Body dimensions: 5270 x 1900 x 1860 mm/1905 mm; cargo box interior dimensions: 1595 x 1540 x 545 mm.

Long wheelbase manual pickup truck: Body dimensions: 5520 x 1900 x 1860 mm/1905 mm; cargo box interior dimensions: 1845 x 1540 x 545 mm.

Gross weight: 2745–2765 kg

Minimum ground clearance for a pickup truck with four doors: 230 mm, making it easy to navigate challenging terrain.

Chassis and suspension of double cabin pickup :

Manual pickup truck drive: Front engine, rear-wheel drive (4×2)

Pickup truck with four doors front suspension: McPherson independent suspension.

Rear suspensionof 4 door crew cab pickup: Leaf spring structure for strong load-bearing capacity.

Tire size of 4 door crew cab pickup: 235/70R16.

Powertrain of pickup truck with 4 doors：

Engine model of pickup truck with 4 doors: LQ481QFB / LQ481QFB1.

Displacement of pickup truck with 4 doors: 1962 mL.

Maximum power of pickup truck with 4 doors: 106 kW at 5600 rpm

Maximum torque of 4 door crew cab pickup : 200 N·m (3600–4600 rpm).

Maximum speed of of 4 door crew cab pickup: 120 km/h.

Transmission of of 4 door crew cab pickup: 5MT.

Fuel Type: Gasoline, compliant with China VI Emission Standards

Fuel Tank Capacity: 70 L, ensuring long driving range and peace of mind.

Applications of double cabin pickup :

Double cabin pickups are widely used in construction projects, urban logistics, farm operations, forestry inspections, government vehicles, and personal off-road recreation. Their comfortable interior and intelligent features also make them suitable for long-distance family trips and everyday transportation. More than just a utility vehicle, they're also a versatile companion.

What are our advantages?

We are a professional manufacturer with over 15 years of experience and expertise. We are committed to providing customers with the most competitive double cabin pickup prices and cost-effective solutions. We offer a one-stop purchasing service for a wide range of products, including double cabin pickups, saving our customers time and effort. Through continuous technological innovation and strict quality control, we have earned the trust of our customers both domestically and internationally.

Certificates of manual pickup truck:

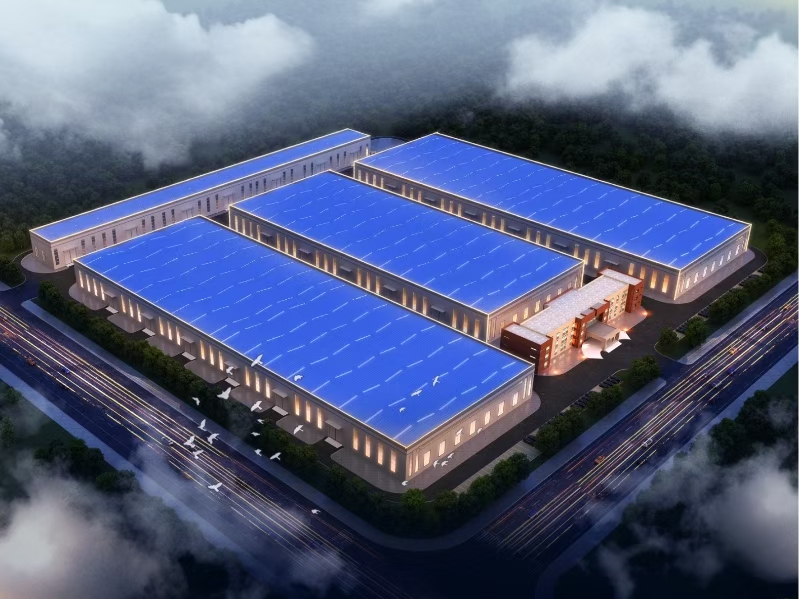

About us：

We are a designated supplier for Foton Motor, Dongfeng Motor, and CRRC Corporation Limited, and maintain long-term partnerships with numerous domestic OEMs. We offer a variety of pickup trucks, including manual pickup trucks and 4-door pickup trucks.
